Printed Channel Plate Signs

Submission specifications for Channel plate signs

Add 5 mm bleed.

To allow leeway for cutting differences in production, always add a bleed of 5 mm around all edges of your design. Make sure colours, background pictures and layouts extend into the bleed area so as to avoid leaving white lines as a result of cutting tolerances. You can submit your file with crop marks and printer's marks.

Keep 10 mm safety margin.

Keep all important text and images at least 10 mm away from the edge of the finished size.

Resolution of at least 150 dpi.

Make sure the resolution of the images and graphics in your artwork are at least 150 dpi.

Use CMYK as the colour mode.

Prepare your files using CMYK as the colour mode, not RGB. Use colourmode FOGRA39 (ISO Coated v2) for coated papertypes and colourmode FOGRA47 (PSO Uncoated ISO12647) for uncoated papertypes. If you are unsure of the colour mode of your file, don't worry we can always convert this for you. Keep in mind this can cause the colours to differ from the original file.

Save your files in uneditable, print-ready file formats.

Save your files in uneditable, print-ready file formats (PDF (1.4 or higher), TIFF, EPS, JPG). Deliver your files in one layer: the background layer.

Here you can find the customised submission specifications for contour cutting.

If you want your product to be cut to a custom shape, you will have to add it as a vector shape on top of your design. Make sure the width of the stroke is 1 pt, the colour is a 100% magenta spot and named "cutcontour". If you want us to adjust it for you, please send the custom shape on a separate page in the desired position. Please note that bleed is still needed for custom shaped designs, meaning your design must go at least 5 mm past the contour cut line.

Convert fonts to outlines or embed all the fonts.

Make sure you convert fonts to outlines or embed all the fonts when saving it to PDF.

Fonts should be at least 20 pt (30 pt for white text).

With a minimum font size of 20 pt (30 pt for white text) make sure your text is readable.

Check your artwork for overprint.

Make sure no elements in your artwork are set on overprint unless you want this effect in your design. You can read more about overprint in our Help Centre.

Frequently Asked Questions for Channel plate signs

What is this product exactly? And what can I use it for?

• Panels are one of our most-sold products and are a very popular promotional material. A panel is a sign for advertisement of your own store or project with your own design on it.

What is the diameter of the holes in Channel plate signs?

• The standard diameter of the drilled holes is 5mm.

Where are the drilled holes in the Channel plate signs located?

• The distance between the center of the hole and the edge of the panel is a standard 8mm. Beware when ordering a very small sign that this could be drilled into the main area of your artwork.

Is this panel fire resistant?

• Our Foamex signs panels are B1 certified, which makes them fire retardant.

Can Channel plate signs be used outside?

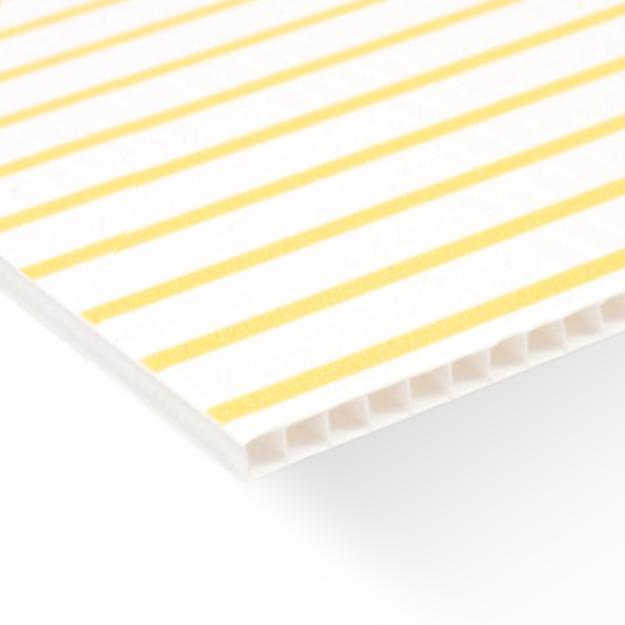

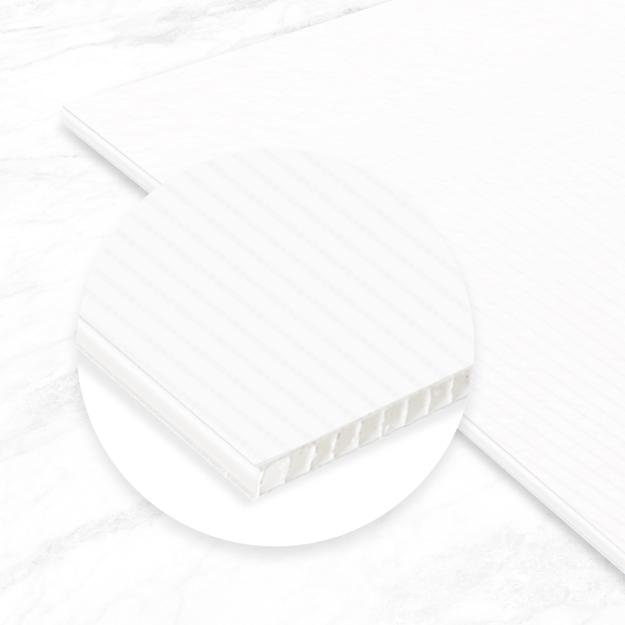

• If you wish to use your signs and panels outside, it is best to choose one of the following materials: Trespa, correx, painted or brushed aluminium.
